Room To Floor

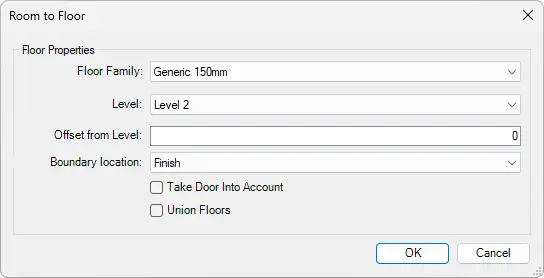

Displays a dialog with settings like boundary location or floor type. If specified, the tool adds the area under the doors, from the room to the floor.

• Floor Family - Displays a list of available floor families from the project.

• Level - Displays a list of levels on which the floor will be created.

• Offset from Level - Offsets floor from the level for the selected value.

• Boundary location - Displays a list of options that defines the boundary of the floor depending on the wall.

• Take door into Account - If selected, creates a floor under the doors.

• Union Floors - If selected, it connects multiple floors if they are in contact or if selected rooms are connected with doors.

Select or create room (architecture tab - Room & Area panel > Click on Room > Click in the drawing area to place the room) > Click on Kobi Toolkit tab > go to Modify panel > Click on Room To Floor > Set up options in dialog window > Click OK
