Room Views

Displays a dialog to create a new view (plan, 3D, elevation) and define view names. This tool creates specified views for each selected room where plan and ceiling views appear as dependent views and the 3D and elevation views appear as new views in the project browser.

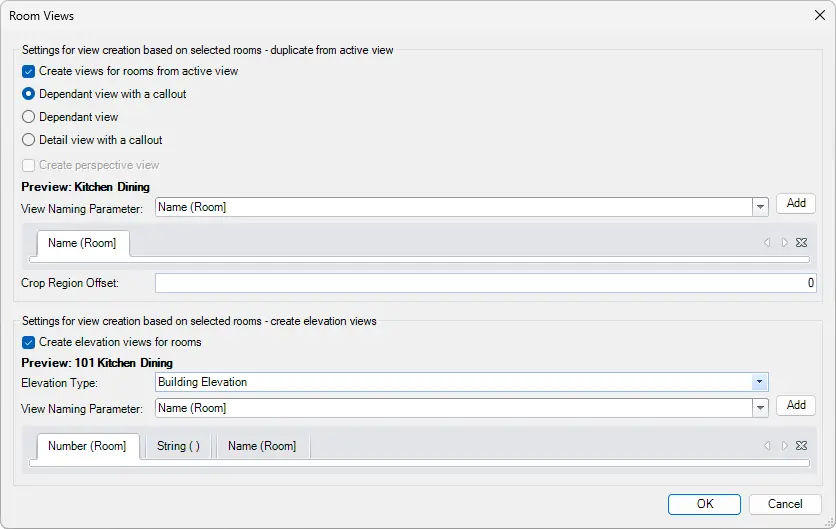

• Settings for view creation based on selected rooms – duplicate from active view

  • Create views for rooms from an active view - Check to create new views and select if you want to create them as:
    • Dependant view with a callout
    • Dependant view
    • Detail view with a callout

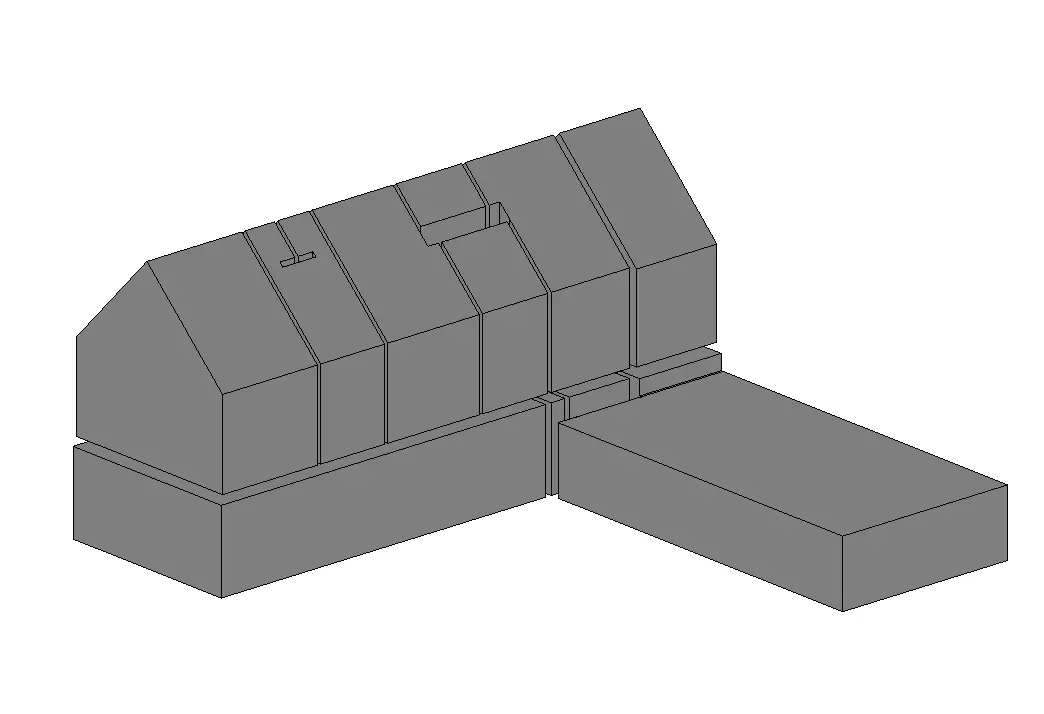

  • Create perspective views
  • View Naming Parameter: Select the naming parameter from the list - Click Add

• Settings for view creation based on selected rooms – create elevation views

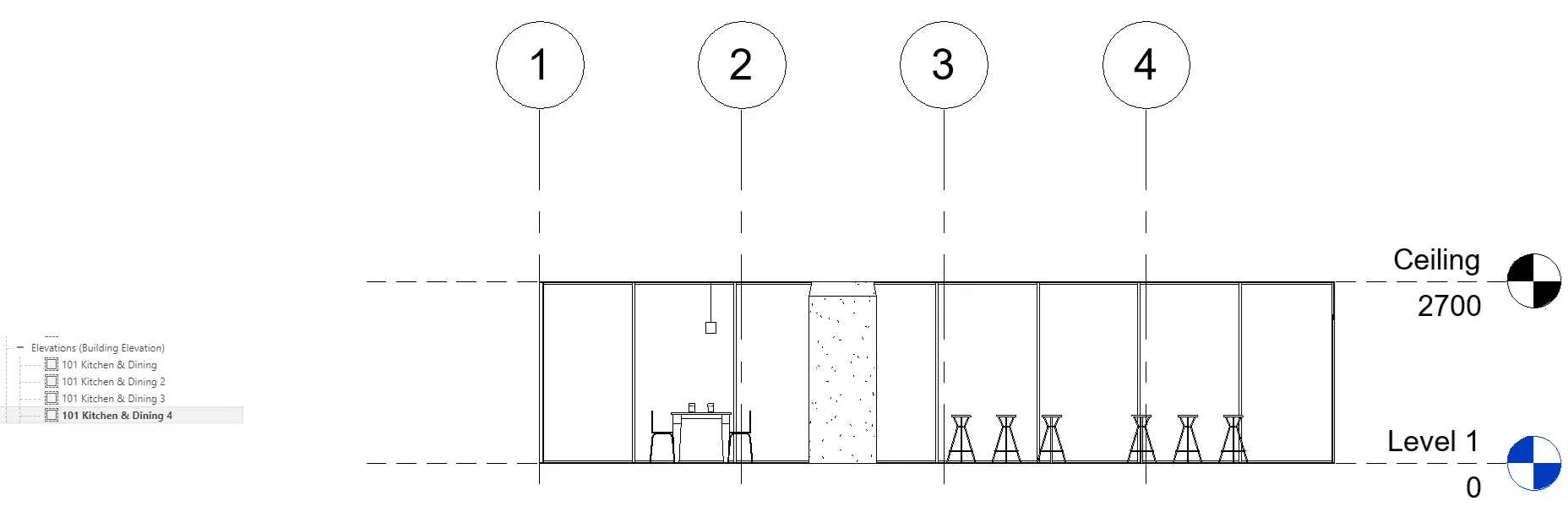

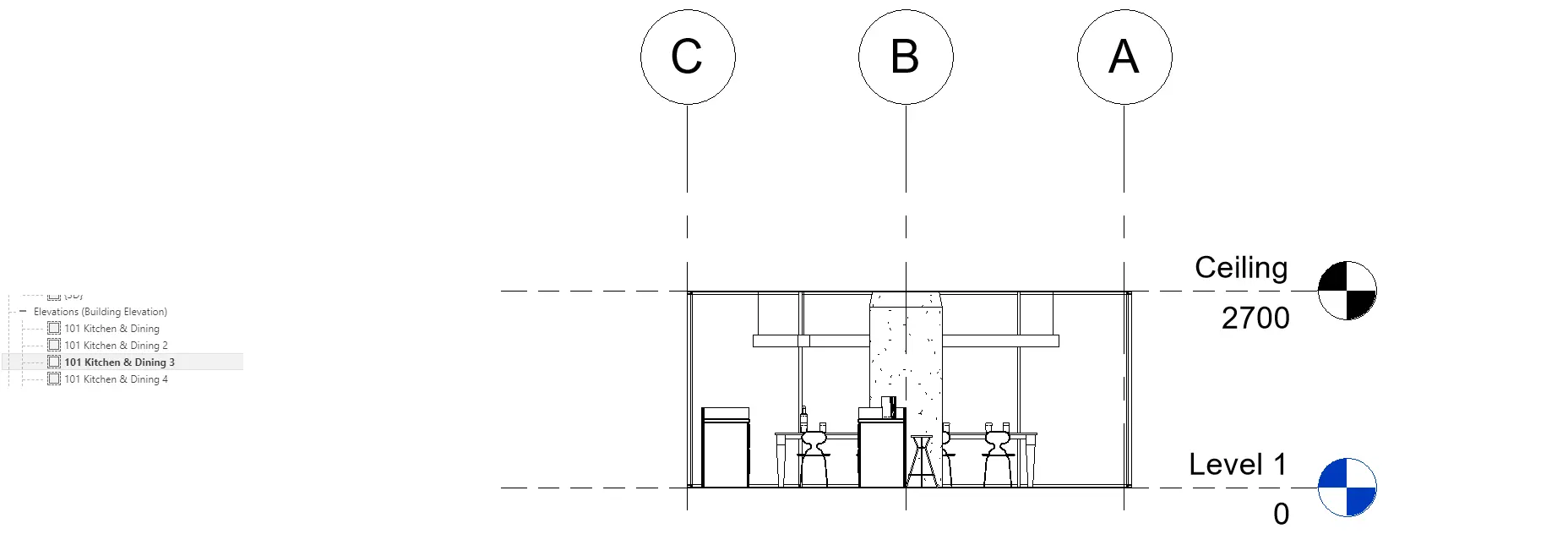

  • Create elevation views for rooms
  • View Naming Parameter: Select the naming parameter from the list - Click Add (Example: Select Number (Room) > Add > select String > Add > Press space to have space as a string between parameters > Select Name (Room) > Add > Previews should show: Number Name)
  • Crop Region Offset

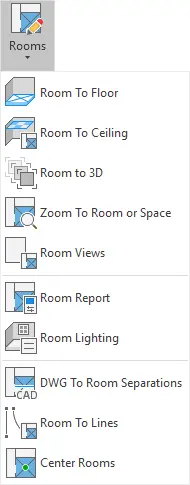

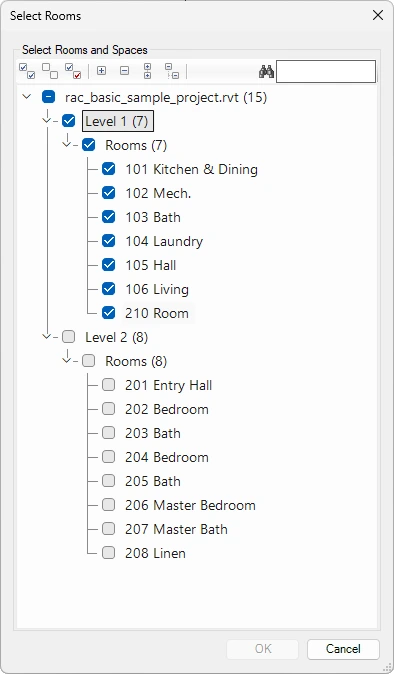

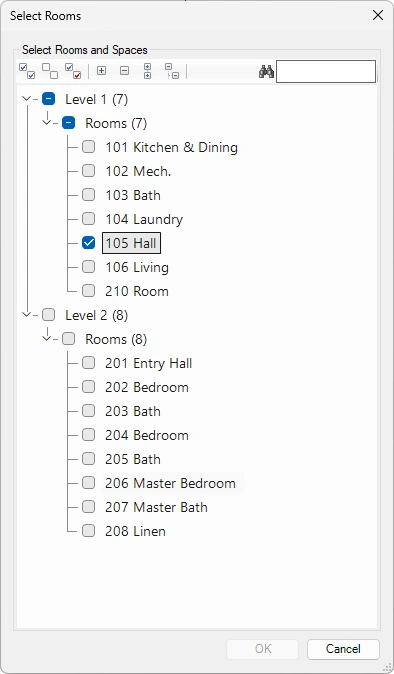

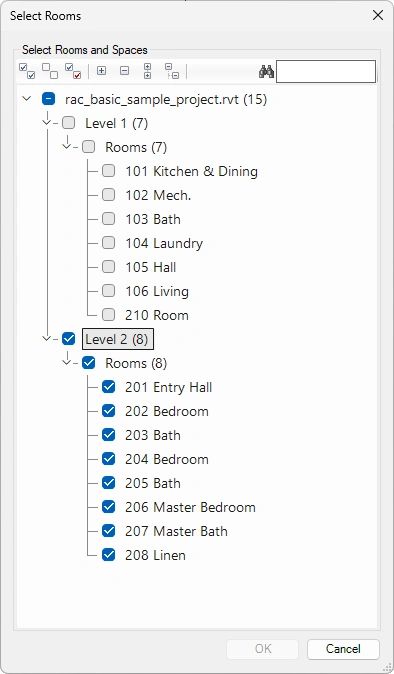

Click on the Kobi Toolkit tab > Go to the View panel > Select Room Views > Select Rooms set settings for room views > Click OK
