Block Legend

Command Description

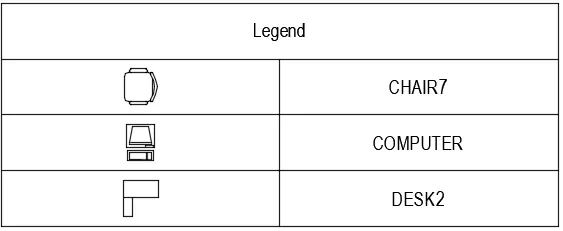

The "Block Legend" command is used to create a legend of blocks from the drawing. Users are able to create legends directly in paper space and select items directly from there. Legends can be updated automatically based on the defined area or Viewport. Optionally include a count column, and save item descriptions and item order for future reuse.

To create block legend

1. Click Kobi Toolkit for AutoCAD tab > Annotation > Block Legend .



2. Select blocks manually using checkbox.

   • Click to select blocks from drawing
   • Click to deselect blocks from drawing
   • Click to select all blocks
   • Click to deselect all blocks
   • Click to open settings.

3. In a drop-down menu select predefined table style

4. Specify the title of the block legend

5. Select the location for the upper-left corner of the table in the drawing.
