# Selection Filter

Command Description

The "Selection Filter" command creates a selection set by using filters. You can access the selection set at a Select Objects prompt with the Previous option.

To create selection set

  1. Click Kobi Toolkit for AutoCAD tab > Selection > Selection Filter Icon for Selection Filter.

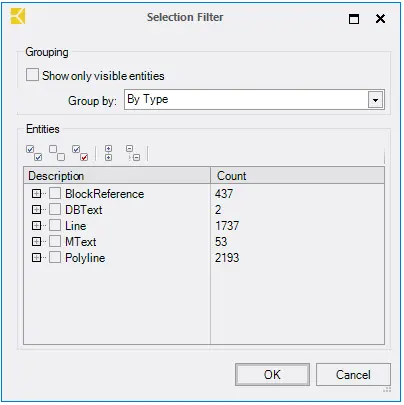

    Selection Filter Dialog Box - Kobi Toolkit for AutoCAD

  2. In "Grouping" section:

    • Check "Show only visible entities" to show only visible entities.

    • There are three options how to group entities: "By Type", "By Layer" or "By Type & Layer".

  3. In "Entities" section:

    • There are five buttons to help you select groups of entities:

      • Click Check all to check all.
      • Click Uncheck all to uncheck all.
      • Click Invert selection to invert selection.
      • Click Collapse all to collapse all.
      • Click Expand all to expand all.

    • Or select groups of entities by using check boxes in the tree view.

      Selection Filter Dialog Box showing entities in the tree view - Kobi Toolkit for AutoCAD

  4. Click "OK".
