# Rename Sheets

Command Description

The "Rename Sheets" command allows you to rename Sheet title and renumber Sheet number. It lets you add prefix, counter, suffix, or constant value to all fields, including Custom Sheet Properties. Sheets can be loaded directly in the command, and an automatic popup guides you if none are loaded. You can also rename layouts to match the Sheet title and, optionally, the Sheet number.

Revision number editing is available in AutoCAD; however, due to API limitations, this option is not available in BricsCAD.

To rename Sheets

  1. Click Kobi Toolkit for AutoCAD tab > Layout > Rename Sheets Rename Sheets icon.

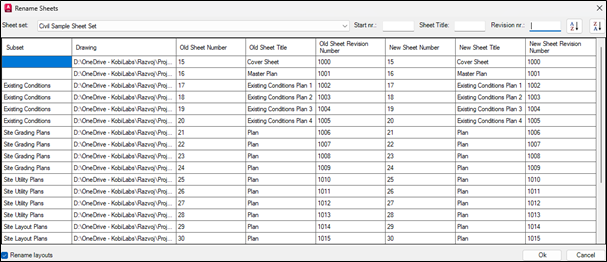

    Rename Sheets dialog box - Kobi Toolkit for AutoCAD and BricsCAD

  2. Select Sheet set.

  3. There are two options to rename Sheets:

    • You can enter the new Sheet title, new Sheet number and new Revision number in the field or
    • You can specify "Start number", "Sheet Title" and "Revision number" for automatic renaming and renumbering. For ascending or descending numbering click on Icon for ascending numbering or Icon for descending numbering button.

  4. Check "Rename layouts" to rename layouts to match new Sheet titles.

  5. Click "OK" to confirm the renaming.
