# Traffic Signs Report

Command Description

This command creates a Traffic Signs Report either from selected Signs, from all Signs in the drawing or Signs attached to specific drawing. You can include any Sign & Sign Holder Attribute in the report table, and you can sort signs according to selected Attribute (attribute “Station” is commonly used in practice).

To create Traffic Signs Report

  1. Click Kobi Signs and Stripes tab > Traffic Signs panel > Traffic Signs Report

  2. Select individual traffic signs in a drawing or use an option [All] or [Select alignment or polyline].

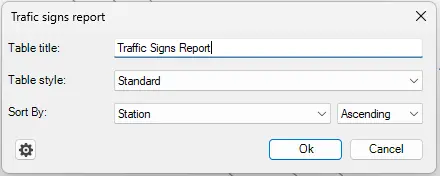

  1. Enter the name of the Table title in the “Traffic signs report” dialog box.

  2. Select the table Style from the drop-down list.

  3. Select the Attribute from the drop-down list by which you want to sort the Signs in the report table. Signs can be sorted ascending or descending according to the selected Attribute.

  4. Click to access detailed Traffic Signs report settings:

  • Cell text height – specifies the cell height according to the text height in the Header of each Column,

  • Cell text width – specifies the cell width according to the text width in the Header of each Column,

  • Block column margin ratio - The value of this factor is inversely proportional to the size of the Sign image in the cell. The higher the specified value, the smaller is the Sign image in the cell. Value 0 means that size of the Sign fits to the cell. The “Block column margin ratio” factor is considered only if the parameters “Sign holder size factor” and “Sign size factor” are set to the "Auto".

  • Sign holder size factor – specify the absolute size of the Sign Holder image in the cell or select the option “Auto” to determine the Sign size with the “Block column margin ratio” factor.

  • Sign size factor - specify the absolute size of the Sign Holder image in the cell or select the option “Auto” to determine the Sign size with the “Block column margin ratio” factor.

  1. Click the in the “Traffic signs report settings” dialog to select Attributes of the Sign Holders and Signs to be included in the report table. Optionally change the name of the Column Headings.

  • Click the checkboxes for the attributes that you want to include in the report. Or click the “Select all” to select all attributes.

  • For each selected attribute, enter its name in the “Translated text” field, which will be displayed in the report table.

  • Click and to change the order of the attributes in the report table.

  • Click to reload data from external JSON encoded settings file.

o The JSON files are located on the following path: C:\Users\Username\AppData\Roaming\KobiLabs\SignsAndStripes

o Since the JSON files includes the same editing options that are available in the “Column editor”, it’s not recommended to edit settings in these files. Click in the “Column editor” dialog to confirm settings.

  1. Click in the “Traffic signs report” dialog.

  2. Specify the report table insertion point.
