Create Multiple Corridors

Command Description

This command creates corridors for multiple alignments.

To create multiple corridors

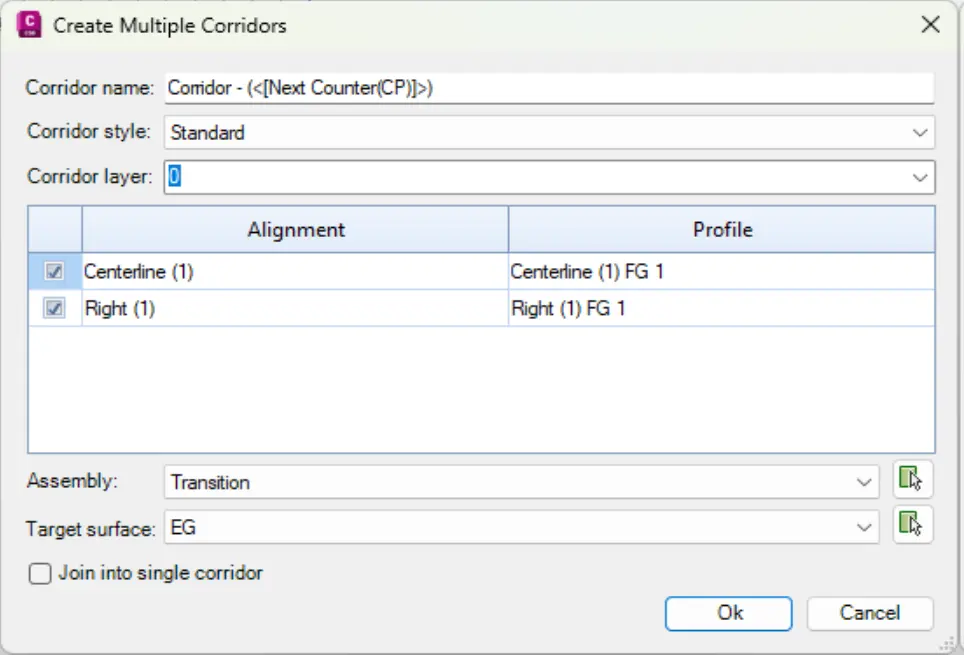

1. Click Kobi Toolkit for Civil 3D tab > Corridors panel > Create Multiple Corridors



2. Enter Corridor name in “Corridor name” field.

3. From “Corridor style” drop down select corridor style that will be used.

4. From “Layer” select corridor layer or enter new layer name.

5. Select alignments for which you want to create corridors.

6. Select a profile from a drop down for each alignment that will be used.

7. From “Assembly” drop down select assembly that will be used.

8. From “Target surface” drop down select surface that will be used.

9. If “Join into single corridor” option is checked one corridor will be created from all selected alignments.
