Points Along Alignment

Command Description

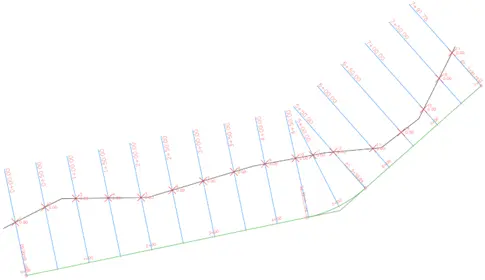

The “Points Along Alignment” command creates the COGO points on the selected polyline, based on the specified interval along the selected alignment.

To create COGO points along alignment

1. Click Kobi Toolkit for Civil 3D tab > Points panel > Points Along Alignment

2. Select polyline on which the COGO points will be created.

3. Select alignment used for the point interval calculation.

4. Enter the point insertion interval.

5. Choose an option to draw points in polyline vertices.
