# Set Multiple Part Properties

Command Description

The “Set Multiple Part Properties” command enables you to set the reference Alignment and Surface for multiple structures and pipes. The tool allows you to define sump depth for multiple structures.

To set multiple part properties

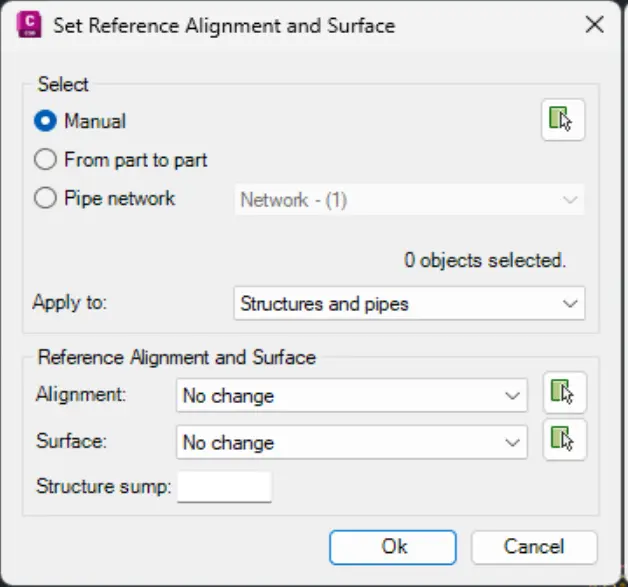

  1. Click Kobi Toolkit for Civil 3D tab > Pipes panel > Set Multiple Part Properties

  1. Select Structures and/or Pipes to set them a reference Alignment and Surface. Three selection options are available:

    a. Manual: Allows you to manually select Structures and/or Pipes in the drawing. Select the "Manual" option and click on the icon to select the desired Structures and/or Pipes in the drawing.

    b. From part to part: Allows you to select all Structures and Pipes between the first and last specified Structure/Pipe in the drawing. Select the "From part to part" option and click on the icon to specify the first and the last Structure/Pipe in the drawing.

    c. Pipe Network: Allows you to select Structures and Pipes from existing Pipe Networks. Select the "Pipe Network" option and select an existing Pipe Network from the drop-down list.

  2. Apply to: from drop-down list select whether changes apply to Structures, Pipes or both Structures and Pipes.

  3. Select the reference Alignment and Surface. Select reference elements either from the drop-down list or click on the icon for manual selection in the drawing.

  4. Define Structure sump value for all Structures in the drawing.
